What can I connect to the X Power Bank?

The X Power bank boiler is designed to meet the main market requirements and advanced standard thermal power stations.

In case of special needs, please contact Dielle Spa for advice on the feasibility of the system.

This manual gives only indications regarding the main connections of the hydraulic components. Each diagram is only indicative, not exhaustive and does not indicate all the necessary components and connections. Installation must always be carried out by qualified personnel and following all the regulations and techniques in force in the country of installation. In the diagram a complete system is shown, however some parts are Optional (example: Low Temperature, Sanitary Production, Solar System). All the external parts shown are not included in the boiler supply.

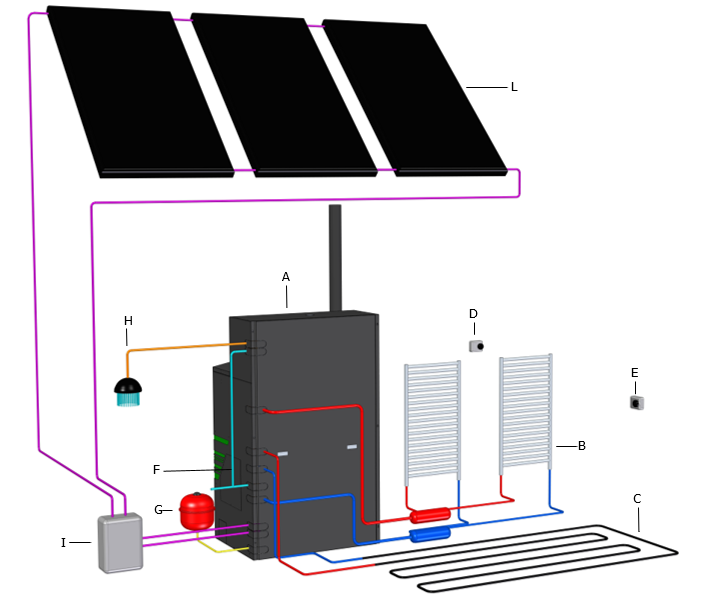

A: Boiler X Power Bank

B: High Temperature System

C: Low Temperature System

D: High Temperature Zone Room Thermostat

E: Low Temperature Zone Room Thermostat

F: Cold Water inlet

G: Exterior expansion vessel

H: Domestic hot water

I: Solar Panel Management Module

L: Solar collectors

The X Power Bank boiler manages and integrates a buffer tank for technical water.

The double management probe allows the puffer to be thermally loaded and unloaded in an optimal way to reduce the on/off cycles of the boiler, thus improving energy efficiency.

The high temperature radiant system is connected downstream of the puffer and is controlled by a booster pump and a room thermostat.

The low temperature system (Optional) is connected downstream of the puffer through a special manual mixing valve to regulate the outlet temperature. The activation of the pump and therefore of the system is managed by means of a special room thermostat to be positioned in the heated rooms.

The sanitary production (Optional) is carried out by means of a removable finned copper coil. In the case of a solar system, thanks to the stratification you can already benefit from the first contributions of solar thermal energy.

The solar integration (Optional) takes place through a removable solar coil and is sized for 5 mt2 of solar collectors. For specific needs please contact Dielle for advice and evaluation.
